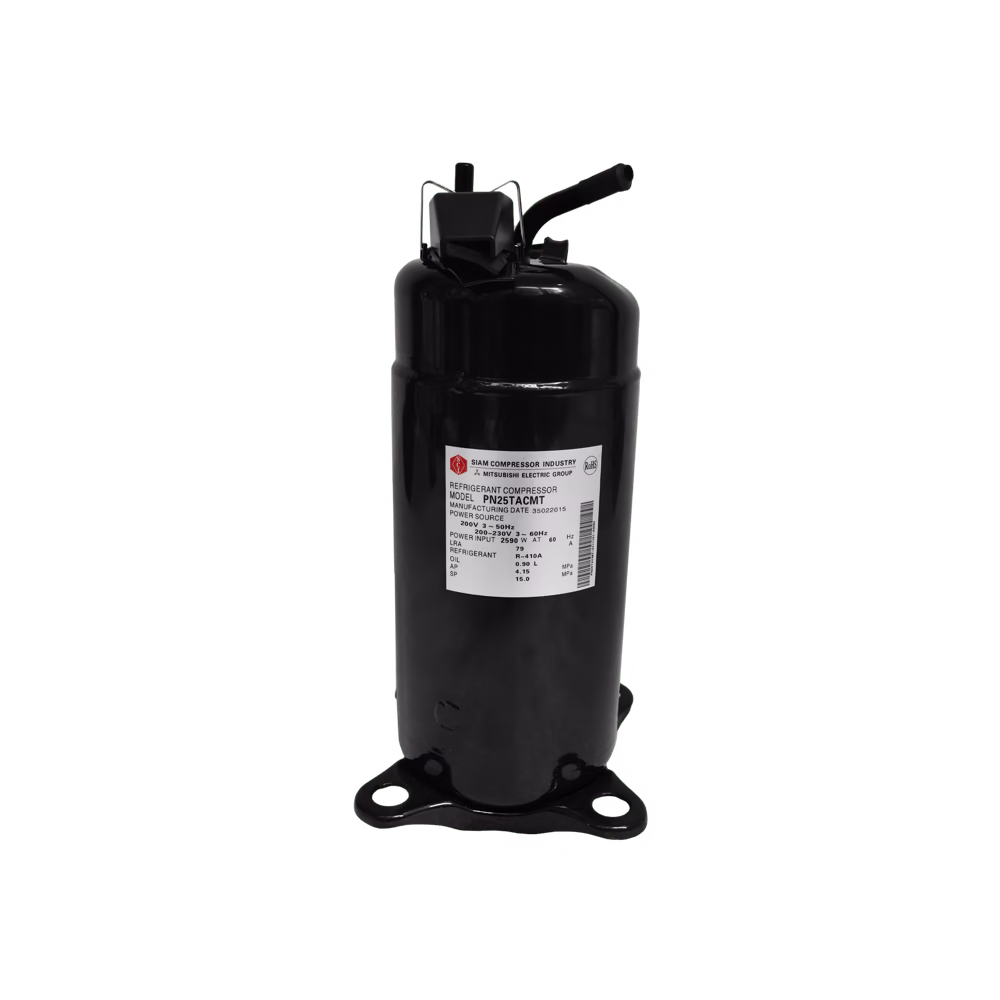

Compressor Mitsubishi Rotary PN25TACMT R410a
Get Latest PriceRelated products

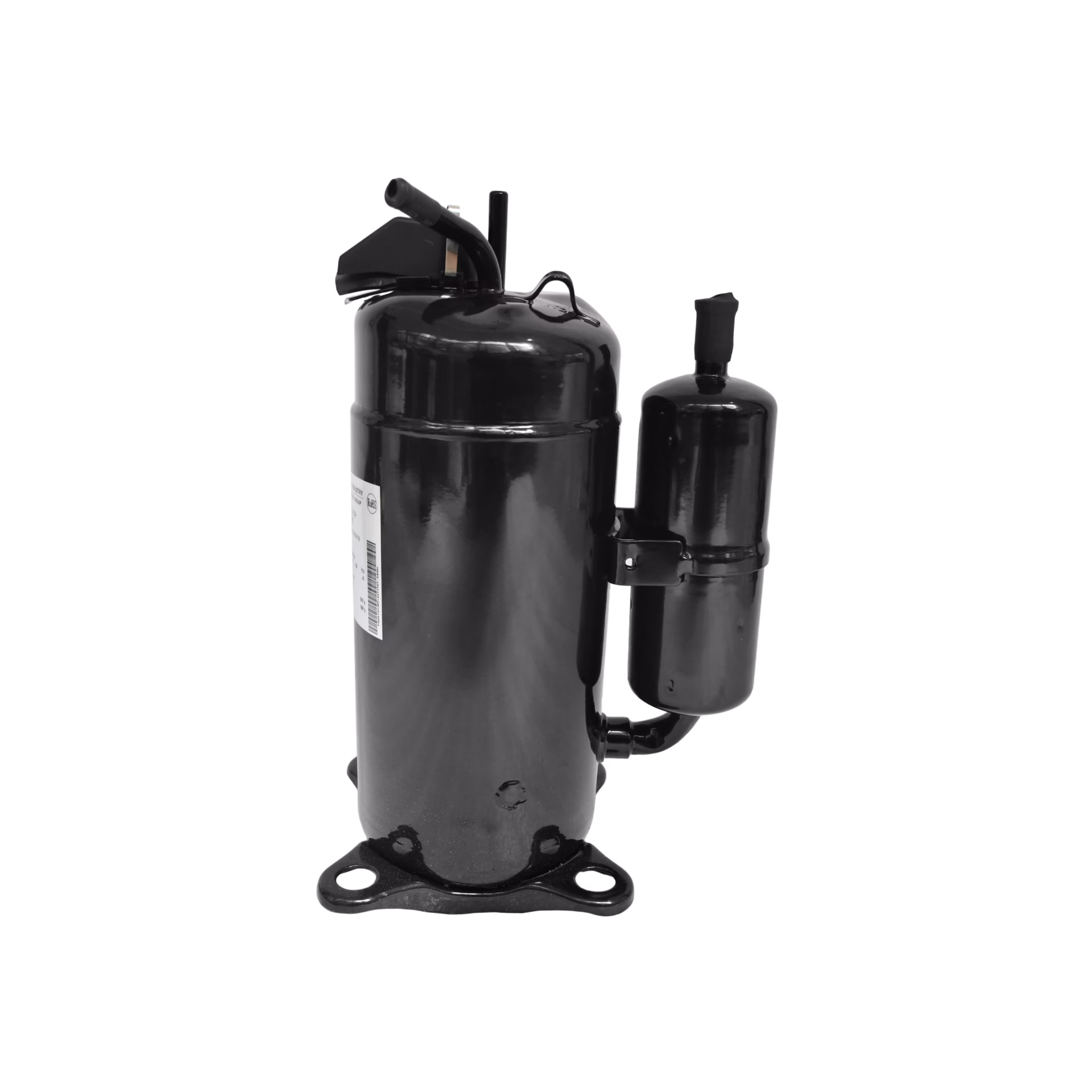

Compressor Mitsubishi NH52 Rotary
Get Latest Price
Refrigerant: R22
Displacement: 52.4 cm³/rev
Motor type: Single-phase induction motor (Permanent Split Capacitor)
Motor protection: Internal
Nominal output: 2500 W
Nominal revolution rpm: 2850/2880
LRA: 85/93 A
Insulation class: E
Motor resistance (20 °C): Main winding: 0.66 Ω Aux winding: 1.88 Ω
Oil type: NM56EP
Charge amount: 1.30 L (79.3 in³)
Danfoss Compressor MT36JG5CVE
Get Latest Price
Danfoss Compressor MT36JG5CVE
| Product Description | |
| MODEL | MT36JG5CVE |
| BRAND | Danfoss |
| COMPRESSOR TYPE | Reciprocating compressor |
| APPLICATION | Air Conditioning |
| POWER SUPPLY & FREQUENCY | 220-240V, 1PH |
| REFRIGERANT | R22 |
| COOLING CAPACITY BTU/HP/W | |
| Connection type | Rotolock |
| Pipe Size | Discharge connection pipe size [in] 1/2 in Discharge connection size [in] 1 in Suction connection pipe size [in] 5/8 in Suction connection size [in] 1 1/4 in |
Danfoss FR6G 1/6HP Compressor
Get Latest PriceDanfoss FR6G 1/6HP Compressor
| Type | Capacity LBP -25/55°C (W) | Capacity HBP +5/55°C (W) | Test Conditions |
|---|---|---|---|
| T | 40 | 20 – 230 | EN 12900/CECOMAF |
| N | 130 – 200 | 570 – 1090 | EN 12900/CECOMAF |
| F | 90 – 150 | 600 | EN 12900/CECOMAF |
| S | 490 – 270 | 850 – 1500 | EN 12900/CECOMAF |
Notes
- LBP (Low Back Pressure): -25/55°C
- HBP (High Back Pressure): +5/55°C
- Refrigerant: R134a
- Voltage: 220-240V/60H
